Vacuum forming machine

Semi-Automatic Models: S-13, S-13B
These models are suitable for skin packaging, various types of vacuum blister forming, and PVC calendar forming.

Operation: Single-cycle automatic. After the vacuum or skin forming process is complete, the finished products must be manually removed.

Key Features: High stability and low failure rate. Custom versions of these models are frequently used for the forming of printed materials.

Application: Recommend for various plastic sheets with a thickness of within 0.1mm to 1.0 mm.

Application: Recommend for various plastic sheets thickness within 0.1mm -4.0mm (Some materia nol fit such thickness)

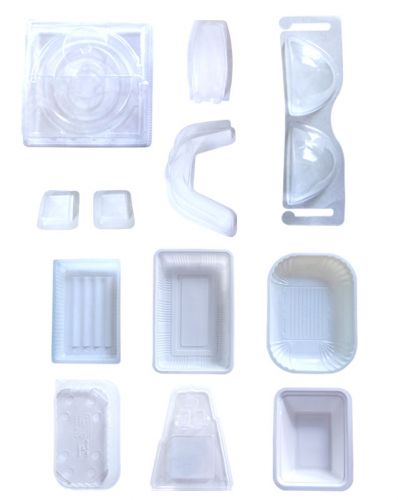

These machines are ideal for producing various blisters, packaging inserts, biscuit/cookie trays, and standard trays.

Automation: Features automatic roll-fed forming and automatic discharge of finished products.

S-13
S-13A S-13E
S-13B
S-13C
S-15A

This machine is fit to make various packing blister, PVC forming calendar and coating film on disposable tray.

It also fit to make the Skin Packing. (Shrink and seal PVC or PET sheet with packing and seal packing article on a cardboard.)

The printing article forming which need to loading the sheet piece by piece also fit by this machine.

Model	S-13
Max. Forming area	570 × 800 mm
Max. Depth	120mm
Temperature control	-------
Heater	Rod Heater
Max. Load of heater	11.8kw
Mechanical Dimensions	1940 × 1700 × 1820 mm
Machine floor space	3.3 Square meter
Wooden case	300 Cuft / 8.49 Cbm
Weight	900 kg
Vacuum pump	2 HP
Air compressor(Option Item)	Min: 2 HP
Air compressor(Option Item)	Best: 3 HP
Best range of material Thick	0.1 ~ 1 mm Plastic roll / Board
Max Material Thickness	According material, some up to 1 mm.
Usable material Thickness	PVC, HIPS, PS, OPS, ABS, APET, GPET, PP, PE......etc sheet.

The video of the actual operation and molding of the S-13 can be watched in this YouTube link:：Click here

If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw

Thank you.

SUGGEST CO., LTD.
Address: 67-1 TA POO ROAD, CHANGHUA, TAIWAN, R.O.C.
彰化市大埔路 67-1 號
TEL: +886-4-7111167, 7111168, 7110728
FAX: +886-4-7111169,
E-mail 1: sunjau@sunjau.com.tw
E-mail 2: sunjau@ms17.hinet.net

Applications:

These machine can mass produce packing blister, disposable food container, biscuit tray, ceiling and can use sheet materials of PVC, PS, ABS, PET into various kinds of boxes, cases, such as cake boxes, meal boxes, toys, food holders suitcases, auto parts, sanitary wares, etc.

The advantage of these machine:

(1) Average heating on sheet:

Average Heating is very important on this kinds of machine. Our machine S-13A standard machine will able to work for PC material that is cause the average heating.

(2) Lower wastage of material: Our machine wastage material compare with the other company machine will less about 5%.

(3) Lower power consumption compare with the other company design. It is very important to saving this kinds not viewable cost for the long time operation this kinds of machine.

------------------------------------------------------------------

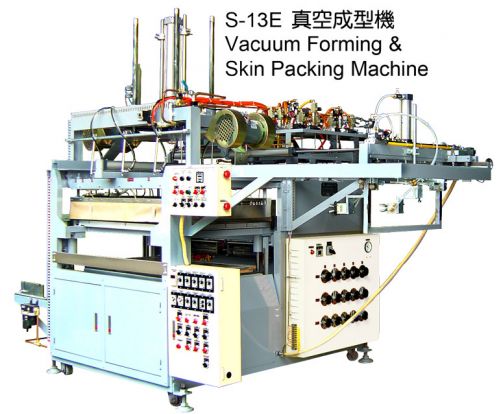

The S-13E have the extra function for skin packing. This machine is for the company who need to make packing blister in automatic, and also need to use skin packing machine. However, if the forming production is heavy or frail, operator should take out the products manually.

Model	S-13A	S-13E
Max. Forming area	570 × 1005 mm	570 × 1005 mm
Max Depth	150 mm	150 mm
Temperature control	15 Divisions	15 Divisions
Heater	Rod Heater	Rod Heater
Max Load of heater	26.3 kw	26.3 kw
Mechanical dimensions	2020×3450×2360mm	2020×3450×2360mm
Machine floor space	7.6 Square meter	7.0 Square meter
Wooden case	420 Cuft / 11.88 CBM	480 Cuft / 13.58 CBM
Weight	1700 kg	1700 kg
Vacuum pump	3 HP	3 HP
Air compressor (Min)	3 HP	3 HP
Air compressor (Best)	5 HP	5 HP
Best range of material thick	0.1~1 mm Roll plastic	0.1~1 mm Roll plastic
Max material thickness	According material, some up to 4 mm.	According material, some up to 4 mm.
Usable material Thickness	PVC, HIPS, PS, OPS, APET, GPET, ABS, PP, PE, ACRYL, PC......etc sheet.	PVC, HIPS, PS, OPS, APET, ABS, PP, PE, ACRYL, PC...etc sheet.

The video of the actual operation and molding of the S-13A can be watched in this YouTube link: Click here

If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw

Thank you.

Such as PVC sheet make bag, that kinds of sheet surface have some small decoration.

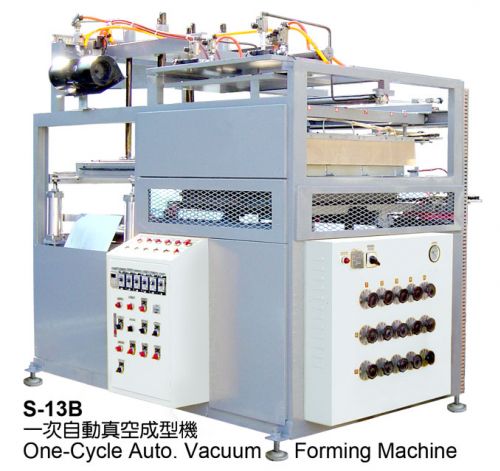

This machine is one cycle automatic single-forming table, the production need manual to be take out from the forming area. We accept the special size order.

Model	S-13B
Max. Forming Area	600 × 800 mm
Max. Depth	120 mm
Temperature control	15 Divisions
Heater	Rod Heater
Max. Load of heater	Upper 10.8 kw
	Lower 8kw
Mechanical dimensions	1980 × 2070 × 2880 mm
Machine floor space	4.2 Square meter
Wooden case	420 Cuft / 11.88 CBM
Weight	1500 kg
Vacuum Pump	2 HP
Air Compressor	5 HP (Option Item)
Best range of material thickness	0.1~4 mm Plastic roll / Board
Max. Material thickness	According material, some up to 4 mm.
Usable material Thickness	PVC, HIPS, PS, OPS, PET, ABS, PP, PE, ACRYL, EVA, PSP ......ETC SHEET.

If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw

Thank you.

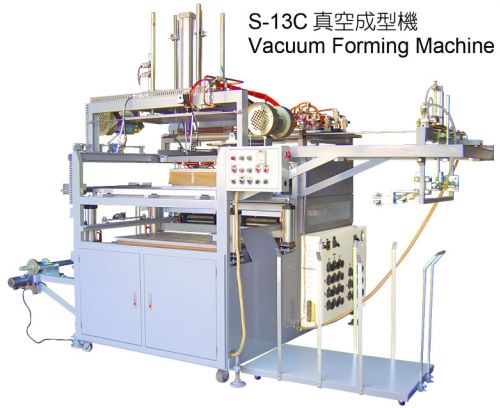

This machine have double heater to heat the sheet from upside and underside of the sheet. It suitable for both thin and thick board forming. The material loading is able to use by roll or board both.

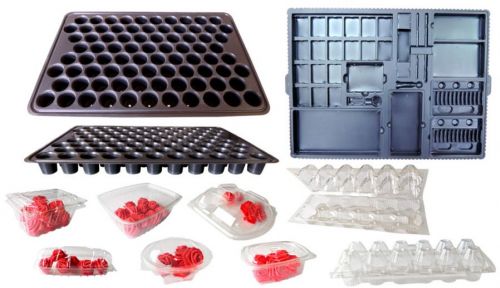

It can mass produce packing blister, disposable food container, biscuit tray, ceiling and it can use sheet materials contain PVC, PS, ABS, PET to make various kinds of boxes, cases, such as cake boxes, meal boxes, toys, sanitary wares, etc.

It also fit to make decoration on soft PVC, for making the special decoration on sheet surface. Such as the cone for speaker or PVC sheet make bag, that kinds of sheet surface have some small decoration will able to make by this method also.

This machine could automatic forming the roll sheet. It also able to use board sheet to loading pieces by pieces.

Model	S-13C
Max. Forming area	600 × 1005 mm
Max. Depth	120 mm
Temperature control	21 Divisions
Heater	Rod Heater
Max. Load of heater	Upper 22 kw
Max. Load of heater	Lower 11.7 kw
Mechanical dimensions	2070 × 3570 × 2710 mm
Machine floor space	7.4 Square meter
Wooden case	540 Cuft / 15.27Cbm
Weight	2000 kg
Vacuum pump	3 HP
Air compressor	7.5 HP (Option Item)
Best range of material thickness	0.1~4 mm Roll & Board
Max. Material thickness	According material, some up to 4 mm.
Usable material Thickness	PVC, HIPS, PS, OPS, PET, ABS, PP, PE, ACRYL, EVA, PSP......ETC SHEET.

If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw

Thank you.

This machine is fit to make various packing blister, packing container, disposable food containers ...etc. production.

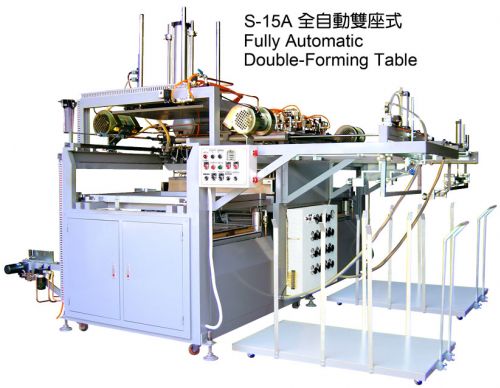

This machine has two stations forming area which could use two different molds with different material at the same machine working at the same time.

It has about 2 set of vacuum forming machine output capacity, but only one set of machine power consumption. The power cost will cheaper when use this model of machine.

It is a very economic model for customer for power cost saving. It also have various special design for saving the power energy and the lower down wastage material design.

Model	S-15A
Max. Forming area	570 × 1005 mm, 2 Sets
Max. Depth	150 mm
Temperature control	15 Divisions
Heater	Rod Heater
Max. Load of Heater	26.3 kw
Mechanical dimensions	2950 × 3450 × 2360 mm
Machine floor space	9.8 Square meter
Wooden case	680 Cuft / 19.23 Cbm
Weight	2500 kg
Vacuum pump	5 HP
Air compressor (Min)	3 HP
Air compressor (Best)	7.5 HP
Best range of material thick	0.1~1 mm Roll plasic
Max Material thickness	According material, some up to 4 mm.
Usable material Thickness	PVC, HIPS, PS, OPS, APET, GPET, ABS, PP, PE, ACRYL, PC ...etc sheet
