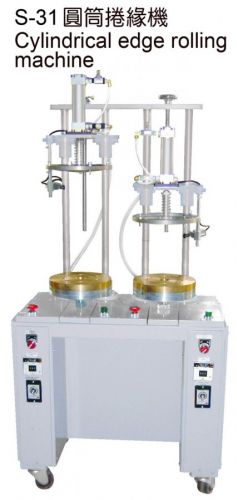

Cylindrical edge rolling machine

Our machine is suitable to roll the PVC or PET cylindrical edge into the inner side. It is used to instead of injection tank.
This method could use only about 0.2 mm ~ 0.3 mm PVC or PET sheet, and the two sides of cylinder could be rolled. It will let the container feel strong when we touch it.

Function:
This machine is suitable to roll the edge of PVC cylinder into the inner side. It will effect the transparent by the rolling.

1. Easy to operate, do not need a skill operator.

2. Easy to adjust for different size.

3. One mould could make several size.

4. Remote possibility of produce mistake rolling product. The machine roll the production manually which will have a lot of fault during the rolling operation. By this machine, all of the products will exact.

5. Rolling two pieces at same time. Saving the labor cost. We accept the special order for rolling 3 pcs or 4 pieces machine.

6.The function of S-31D is same as S-31, the only difference is that S-31D have 4 rolling device.

Specification S-31 S-31D
Max. High of Cylindrical 350 mm 350 mm
Max. Diameter of Product 210 mm 210 mm
Min. Diameter of Product 900 × 520 × 1430 mm 1800 × 520 × 1430 mm
Heater 300W × 2 Pieces 300W × 4 Pieces
Net Weight 250 kg 250 kg
Operation Speed 8-10 Sec/PCS × 2 Mould 8-10 Sec/PCS × 4 Mould

If you want to realize more information, please send email to our business address:
sunjau@sunjau.com.tw

Thank you.
